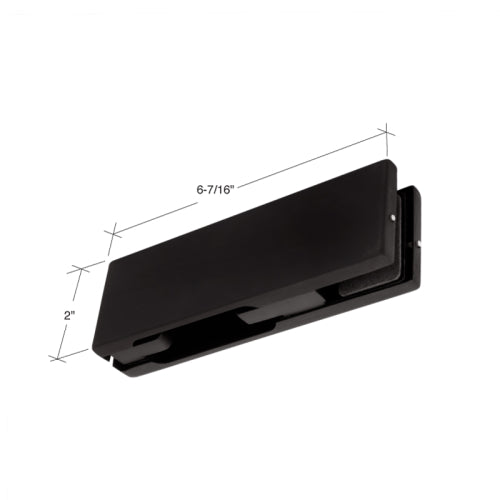

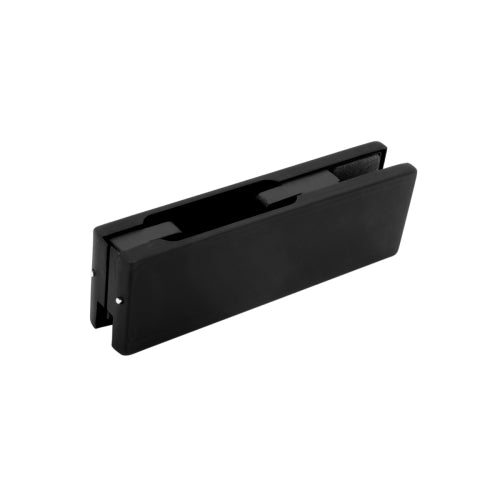

Top/Bottom Patch Fitting No Insert - Matte Black
Top/Bottom Patch Fitting No Insert - Matte Black
Regular price
$44.00 USD
Regular price
Sale price
$44.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Use With Top PF303 and Bottom PF301 PF Series Inserts
- Gaskets For Use With 3/8" or 1/2" Glass
Patch Fitting (Less Fitting) will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.
Glass Fabrication Required:
One Corner Notch
Includes:
High Density Cast Body
Cover Plates (finish of your choice)
Gaskets for 3/8" or 1/2" (10 or 12 mm)
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
